Pixel Pitch: P2.6mm / P2.976mm / P3.91mm / P4.81mm
Module Size: 250mm×250mm
Cabinet Size (W×H×T): 500mm×1000mm×88mm
Pixel Configuration: SMD
Refresh Rate: 1920Hz / 3840Hz
Product Material: Die-casting Aluminum
Viewing Angle: 140/140 degrees
Power Consumption (Avg./Max.): 240W / 710W
IP Rate: Indoor IP43 / Outdoor IP65
Panel Weight: 13KG
Designed for your High-end Events
◆ Fast Lock ◆ LCD Detection ◆ Curve Lock Systems ◆ Anti-collision Design
Indoor
◆ Pixcel Pitch: 2.6 / 2.97 / 3.91mm ◆ Brightness: 1000cd/m² ◆ Weight: 11 Kg

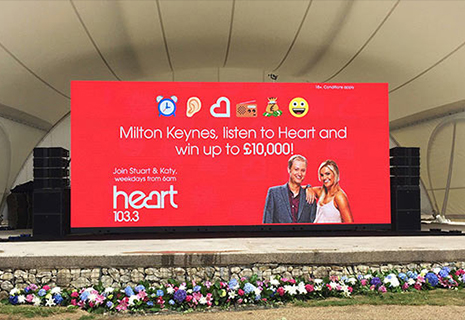

Outdoor
◆ Pixcel Pitch: 3.47 / 3.91 / 4.81mm ◆ Brightness: 4500cd/m² ◆ IP Rate: 65 ◆ Weight: 13 Kg
◆ Cabinet Size: 500mm×500mm×88mm ◆ Cabinet Material: Aluminium ◆ Refresh Rate: ≥ 3840Hz
Front & Rear service (Indoor)
Front and Rear serviceable cableless connection Module, suitable for multi applications.
New Cabinet design
Die-casting aluminum cabinet frame applies latest molding workmanship, which ensures its accuracy and durability.
Fast-Lock System
Fast-lock system with ergonomic design, 5 seconds’ instant installation.
500mm×500mm cabinets and 500mm×1000mm, cabinets can match each other easily.

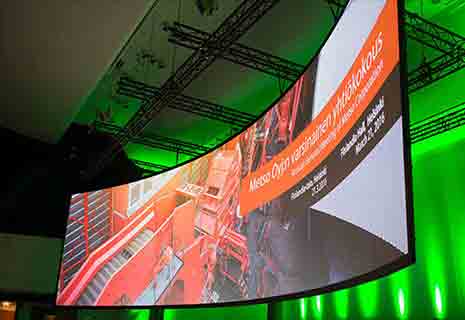

Curve Installation
Advanced Inner and outer curve lock systems
Curve Installation is available for both 500mm×500mm and 500mm×1000mm cabinets
Explosive View
-
Perfect Combination
-

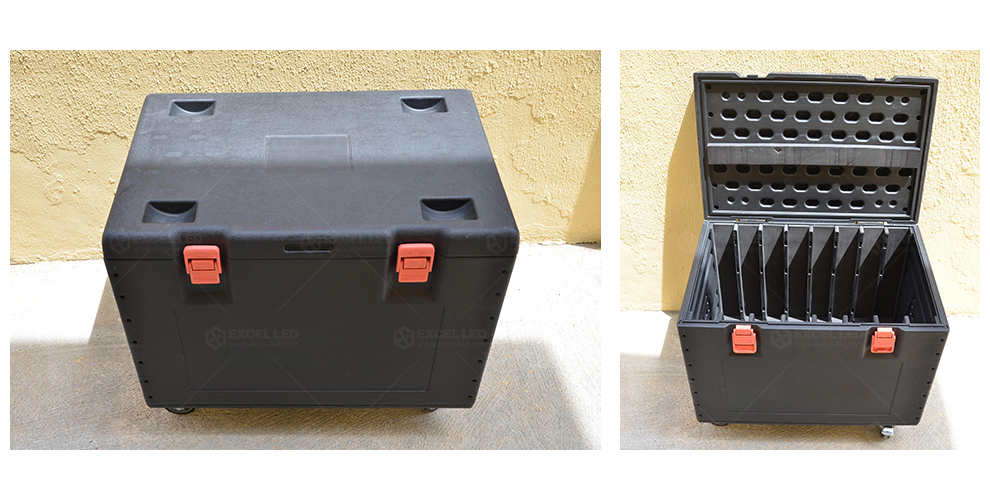

Plastic Flight Case
-
Pixel Pitch: P2.6mm / P2.976mm / P3.91mm / P4.81mm Module Size: 250mm×250mm Cabinet Size (W×H×T): 500mm×500mm×88mm Pixel Configuration: SMD Refresh Rate: 1920Hz / 3840Hz Product Material: Die-casting Aluminum Viewing Angle: 140/140 degrees Power Consumption (Avg./Max.): 240W / 710W IP Rate: Indoor IP43 / Outdoor IP65 Panel Weight: 7.5KG
Learn More
Pixel Pitch: P2.6mm / P2.976mm / P3.91mm / P4.81mm Module Size: 250mm×250mm Cabinet Size (W×H×T): 500mm×500mm×88mm Pixel Configuration: SMD Refresh Rate: 3840Hz Product Material: Die-casting Aluminum Viewing Angle: 140/140 degrees Power Consumption (Avg./Max.): 240W / 710W IP Rate: Indoor IP43 / Outdoor IP65 Panel Weight: 7.5KG
Learn More
Pixel Pitch: P2.6mm / P2.976mm / P3.91mm / P4.81mm Module Size: 250mm×250mm Cabinet Size (W×H×T): 500mm×1000mm×88mm Pixel Configuration: SMD Refresh Rate: 3840Hz Product Material: Die-casting Aluminum Viewing Angle: 140/140 degrees Power Consumption (Avg./Max.): 240W / 710W IP Rate: Indoor IP43 / Outdoor IP65 Panel Weight: 13KG
Learn More
Pixel Pitch: P2.6mm / P2.976mm / P3.91mm / P4.81mm Module Size: 250mm×250mm Cabinet Size: 500mm×500mm×88mm (W×H×T) Pixel Configuration: SMD Refresh Rate: 1920Hz / 3840Hz Product Material: die-casting aluminum Viewing Angle: 140/140 degrees Power Consumption (Avg./Max.): 240W / 710W IP Rate: Indoor IP40 / Outdoor IP65 Panel Weight: 7.5KG
Learn More
Pixel Pitch: P2.6mm / P2.976mm / P3.91mm / P4.81mm Module Size: 250mm×250mm Cabinet Size (W×H×T): 500mm×1000mm×88mm Pixel Configuration: SMD Refresh Rate: 1920Hz / 3840Hz Product Material: Die-casting Aluminum Viewing Angle: 140/140 degrees Power Consumption (Avg./Max.): 240W / 710W IP Rate: Indoor IP43 / Outdoor IP65 Panel Weight: 13KG
Learn More
