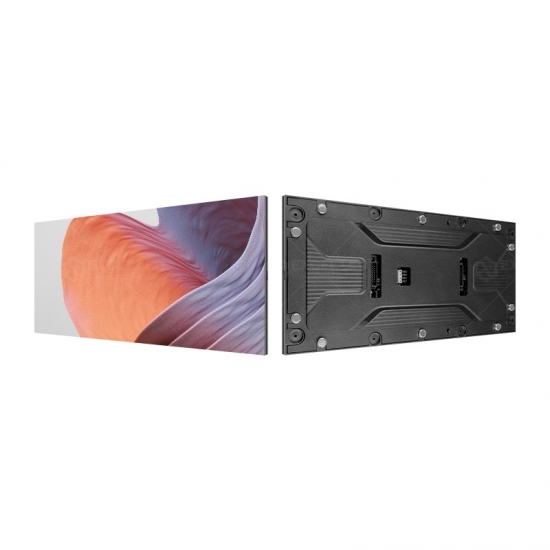

EM Series P1.2 P1.5 P1.8 P2 P2.5 P3 Indoor Fixed LED Screen Module

EM Series P1.2 P1.5 P1.8 P2 P2.5 P3 Indoor Fixed LED Screen Module

Pixel Pitch: P1.2mm/ P1.5mm/ P1.8mm/ P2mm/ P2.5mm/ P3mm

Module Size: 320mm×160mm

Pixel Configuration: SMD

Refresh Rate: 3840Hz

Product Material: Die-casting Aluminum

Viewing Angle: 160/160 degrees

Power Consumption (Avg./Max.): Energy saving than normal

IP Rate: Indoor IP20

Inquire Now

Features

Intelligent Dehumidification Function

By preheating lamp beads, the interior of the lamp bead is evaporated.

Standard High Quality Accessories

3840Hz Constant Current Driver IC

Smart Color Temperature

There Are Three Modes of Standard / Video / Text To Adjust

Ultra High Contrast

Ultra high contrast, form a strong light and dark contrast to make the image deep and three dimensional

Ultra High Contrast

160° ultra wide viewing angle, make the field of vision wider

Realize seamless smooth assembly between screens, bringing you to high definition pictures to enjoy.

HDR High Dynamics

Professional picture quality engine technology has greatly enhanced the grayness and color expressiveness of the screen.

The color and brightness consistency of the screen can reach more than 98%

Support HDR / 3D Display / MOB Optical Film Application

Free Installation

Brew design, high end atmospheric quality products are available

Single Point Correction Technology

≥100% NTSC color gamut, making the vision more realistic

Single point correction technology makes the image more beautiful, the low brightness and high gray technology realize the perfect high definition, adding dynamic pictures, pulling you into a dynamic magical world.

Fanless Sluggish Design

Products useless fan silent design

Energy saving and environmental protection, reducing noise infection

Cabinet Size

Specifications

Part Number	P1.2	P1.5	P1.8	P2	P2.5	P3
Pixel Encapsulation	SMD 1010	SMD 1010	SMD 1515	SMD 1515	SMD 2121	SMD 2121
Pixel Spacing (mm)	1.25	1.538	1.86	2	2.5	3.076
Panel Resolution (W×H)	256 × 128	208 × 104	172 × 86	160 × 80	128 × 64	104 × 52
Pixel Density (Point/m²)	640,000	422,500	288,906	250,000	160,000	105,625
Panel Size (mm)	320(W) × 160(H)	320(W) × 160(H)	320(W) × 160(H)	320(W) × 160(H)	320(W) × 160(H)	320(W) × 160(H)
Unit Area (m²)	0.0512	0.0512	0.0512	0.0512	0.0512	0.0512
Panel Weight (kg)	0.45	0.45	0.45	0.45	0.45	0.45
Panel Input Voltage	4.5V	4.5V	4.5V	4.5V	4.5V	4.5V
Speaking of Color, Brightness Correction Technology	Support	Support	Support	Support	Support	Support
White Balance Brightness (nits)	0-800	0-800	0-800	0-800	0-800	0-800
Standard Color Temperature (K)	2000K-15000K Adjustable	2000K-15000K Adjustable	2000K-15000K Adjustable	2000K-15000K Adjustable	2000K-15000K Adjustable	2000K-15000K Adjustable
Perspective (Horizontal/vertical)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
The Center Distance of The Light Emitting Point	<3%	<3%	<3%	<3%	<3%	<3%
Brightness/Color Uniformity	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%
Contrast	12000:1	12000:1	12000:1	12000:1	12000:1	12000:1
Maximum Power Consumption (W/m²)	475	420	420	420	475	440
Average Power Consumption (W/m²)	158	140	140	140	158	146
Power Supply Requirements	AC186~264V, Frequency 47-63(Hz)	AC186~264V, Frequency 47-63(Hz)	AC186~264V, Frequency 47-63(Hz)	AC186~264V, Frequency 47-63(Hz)	AC186~264V, Frequency 47-63(Hz)	AC186~264V, Frequency 47-63(Hz)
Frame Frequency	50&60Hz	50&60Hz	50&60Hz	50&60Hz	50&60Hz	50&60Hz
Drive Method	Driver/64 Sweep	Driver/52 Sweep	Driver/43 Sweep	Driver/40 Sweep	Driver/32 Sweep	Driver/26 Sweep
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Life Typical Value (hrs)	100,000H	100,000H	100,000H	100,000H	100,000H	100,000H
Work Temperature/Humidity Range	-10°C-40°C/10%-90%RH	-10°C-40°C/10%-90%RH	-10°C-40°C/10%-90%RH	-10°C-40°C/10%-90%RH	-10°C-40°C/10%-90%RH	-10°C-40°C/10%-90%RH
Store/Humidity Range	-20°C-60°C/10%-90%RH	-20°C-60°C/10%-90%RH	-20°C-60°C/10%-90%RH	-20°C-60°C/10%-90%RH	-20°C-60°C/10%-90%RH	-20°C-60°C/10%-90%RH
Applicable Standard	CCC, Energy Saving	CCC, Energy Saving	CCC, Energy Saving	CCC, Energy Saving	CCC, Energy Saving	CCC, Energy Saving
