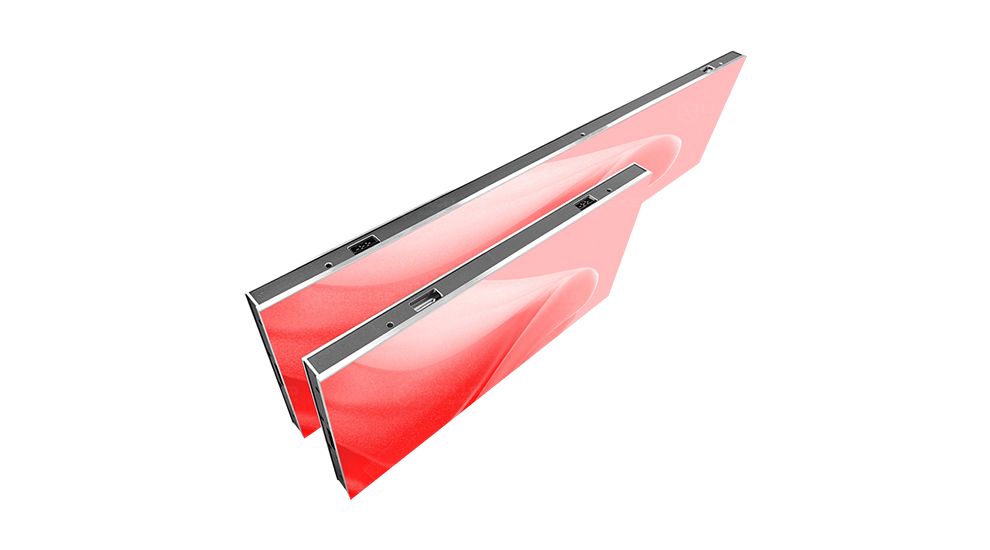

D-Series (thin section)
◆ P1.95 / P2.5 / P2.976 / P3.91
◆ Front maintenance, simple structure and easy installation;
◆ All aluminum profile box, seamless splicing;
◆ The appearance is fashionable and concise, ultra-thin and beautiful;
◆ The picture quality is clear, with high brightness and contrast, and good color saturation.
![](/js/tinymce/demo/images/202206/20/cc6a4bc51f5b995b414ae55075ec61dd.jpg)
Cabinet Size and Weight
-
![](/js/tinymce/demo/images/202206/20/13f3dc1bd580493404e1b0af119c7039.jpg)
Aluminum Profile Box
◆ Ultra-thin (thickness only 33mm)
◆ Ultra-light (the weight of a single box is only 5.8kg/4.35kg/2.9kg)
◆ Front maintenance, simple structure and easy installation
◆ Fashionable and simple appearance, ultra-thin and beautiful
◆ Support split-screen multi-screen display
◆ Clear picture quality, high brightness and contrast, good color saturation
![](/js/tinymce/demo/images/202206/20/5014ca96c3d6d5fe395a6f6c8819ce76.jpg)
◆ All aluminum profile design ◆ Seamless ◆ Automatic cooling
![](/js/tinymce/demo/images/202206/20/a0e54241e914c2746aafe29784c1c271.jpg)
Full Front Maintenance Design
-
![](/js/tinymce/demo/images/202206/20/1a6cad23e4c464911b0dc7d2d24ce074.jpg)
High-Efficiency Driver Chip
◆ 16 channels of PWM constant current output, 16~32 sweeps can be freely selected
◆ Has excellent anti-interference characteristics
◆ Constant current and low gray effect are not affected by PCB board
◆ Precise control of LED brightness
![](/js/tinymce/demo/images/202206/20/b72830555cf09887920049f181ad3364.jpg)
Pin Connection, cable free for modules
◆ Pin between the module and the box is designed to completely get rid of the Slackness of wires.
◆ All-aluminum box, rapid heat dissipation.
![](/js/tinymce/demo/images/202206/20/d6d6b5f5db3c545b1d007eb7787a2805.jpg)
Module Automatic Connection
The module and the box are adsorbed by multiple magnetic columns, which are reliable and do not fall off.
![](/js/tinymce/demo/images/202206/20/3931fe753d1c482d99a9ef882d732c2c.jpg)
Adsorption is firm and does not fall off
3840Hz Refresh Rate
-
![](/js/tinymce/demo/images/202206/20/d6a324a9602cd3a255be6b95b9f64259.jpg)
16:9 Ratio Resolution
◆ 16 Bit Grayscale ◆ 5000:1 High Contrast Ratio ◆ 68.7 Billion Colors
![](/js/tinymce/demo/images/202206/20/608f667d1fc6f5b921e38b567b413794.jpg)
160° Ultra-wide Viewing Angle
-
![](/js/tinymce/demo/images/202206/20/e63bdced50a4b0ab8c97ae07a72ba045.jpg)
Installation Diagram
-
![](/js/tinymce/demo/images/202206/20/8013d027140c2a327febb6c13e2094c8.jpg)
Case Show
-
![](/js/tinymce/demo/images/202206/20/77f9ee99b07c27c65d6bff3473a7433c.jpg)
Model |
P3.91 |
Box Size |
1000mm×250mm×33mm |
Screen Size |
3m×3m |
Installation Method |
Hoisting |
LED Lamp Beads |
SMD2121 |
Driver Chip |
ICN2153 |
Refresh Rate |
3840Hz |
